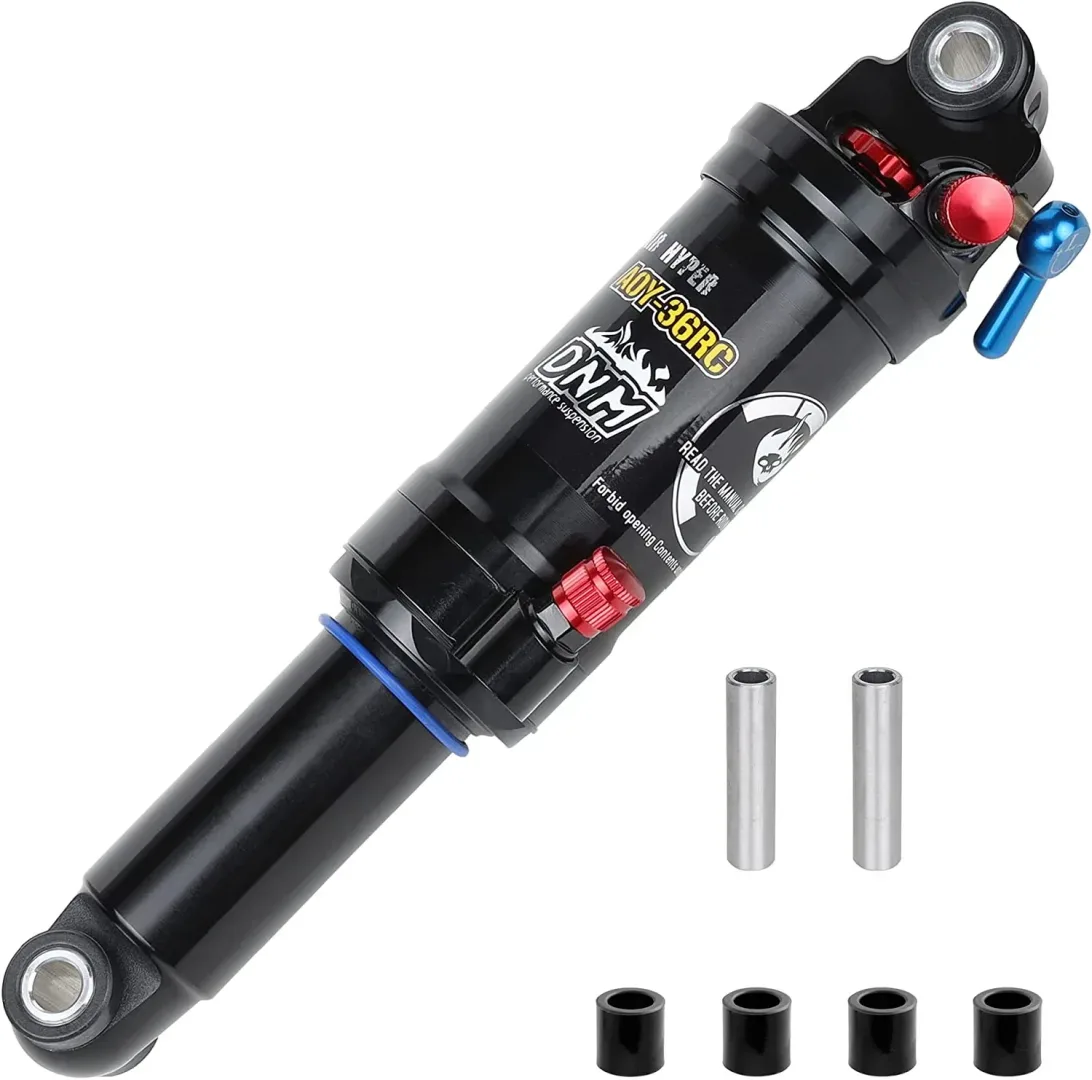

DNM Adjustable Air Rear Shock for I7 Pro – 165 × 35 mm

Fine-tune your suspension with the DNM air rear shock, designed for XC and trail riding and specified for the I7 Pro. With adjustable rebound, lockout and air pressure, it lets you tailor the suspension feel to your riding needs.

Three Suspension Adjustments

• Rebound adjustment: Control how quickly the shock returns after compression.
• Lockout: Select a firmer suspension setting when needed.
• Air pressure: Adjust the air spring to suit your suspension setup.

Aluminium Shock Construction

The shock features a hard-anodised AL-6061 aluminium body and a 10 mm AL-7075 aluminium damper shaft. The 165 mm version weighs approximately 400 g.

DNM Rear Shock Specifications

• Compatibility: I7 Pro, subject to matching mounting dimensions
• Eye-to-eye length: 165 mm
• Shock stroke: 35 mm
• Adjustments: Rebound, lockout and air pressure
• Body material: Hard-anodised AL-6061 aluminium
• Damper shaft: Hard-anodised AL-7075 aluminium, 10 mm diameter
• Riding style: XC and trail
• Weight: Approximately 400 g
• Made in: Taiwan

Included Mounting Hardware

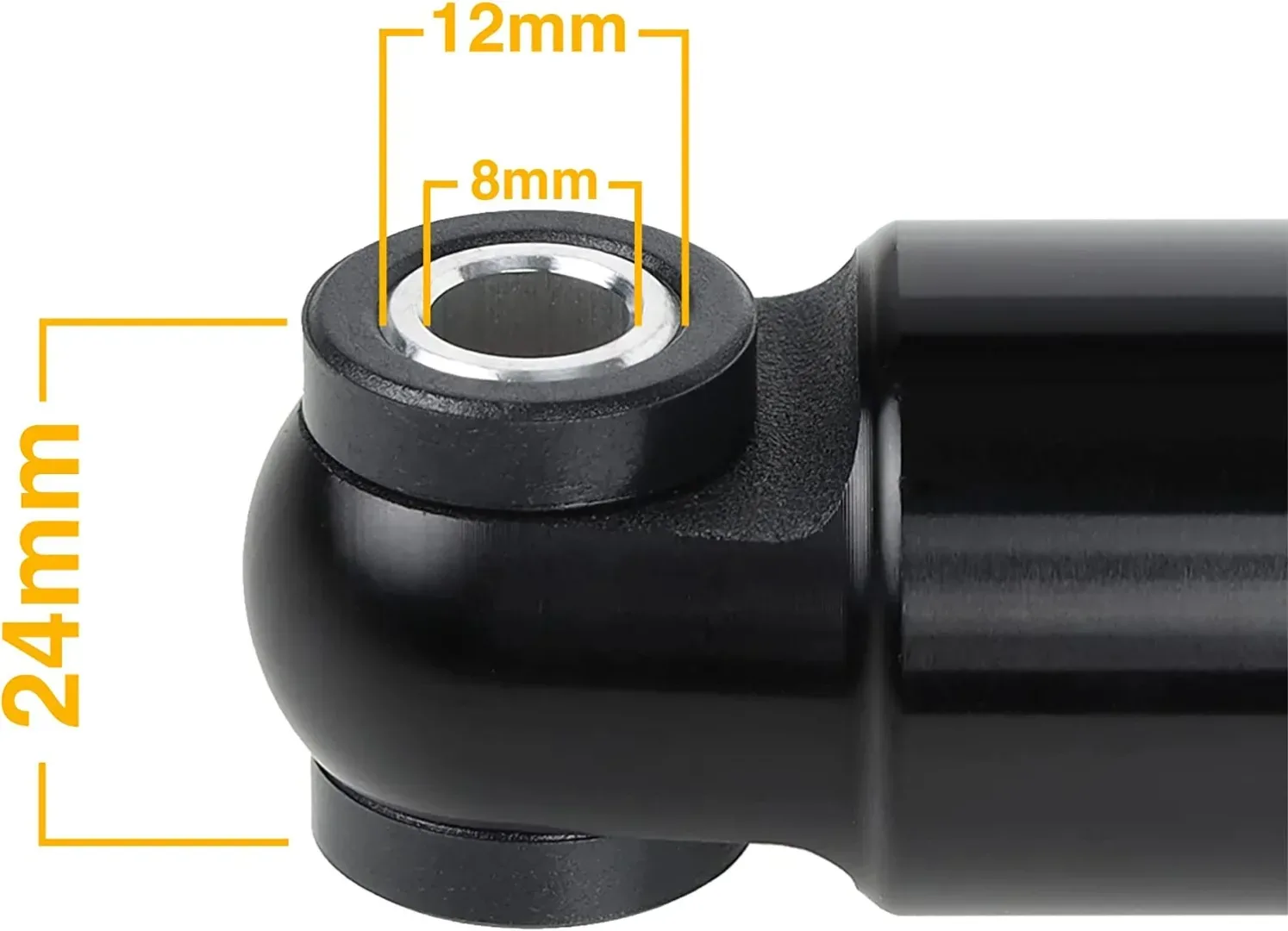

• Top bushing: 8 × 24 mm
• Bottom bushing: 8 × 24 mm
• Additional bushing and hardware: 8 × 50 mm

Check your existing shock’s eye-to-eye length, stroke and mounting hardware before ordering. Follow DNM’s setup instructions when adjusting air pressure.
