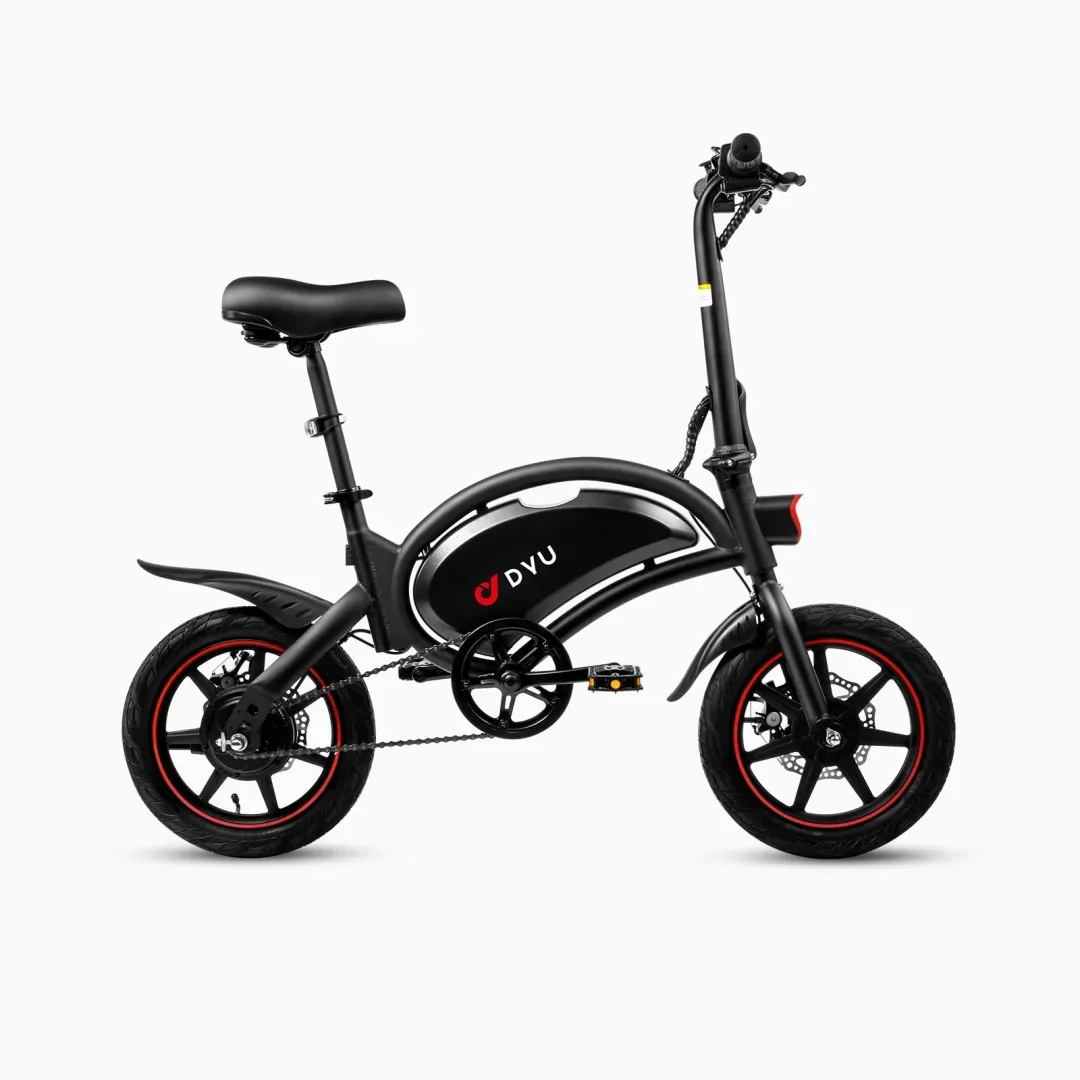

DYU D3F 14 Inch Mini Folding Electric Bike

The DYU D3F is a compact folding electric bike built around a 14-inch wheel format and metal frame. Its small dimensions and folding handlebars make it practical for storage at home, transport in a car and shorter urban journeys.

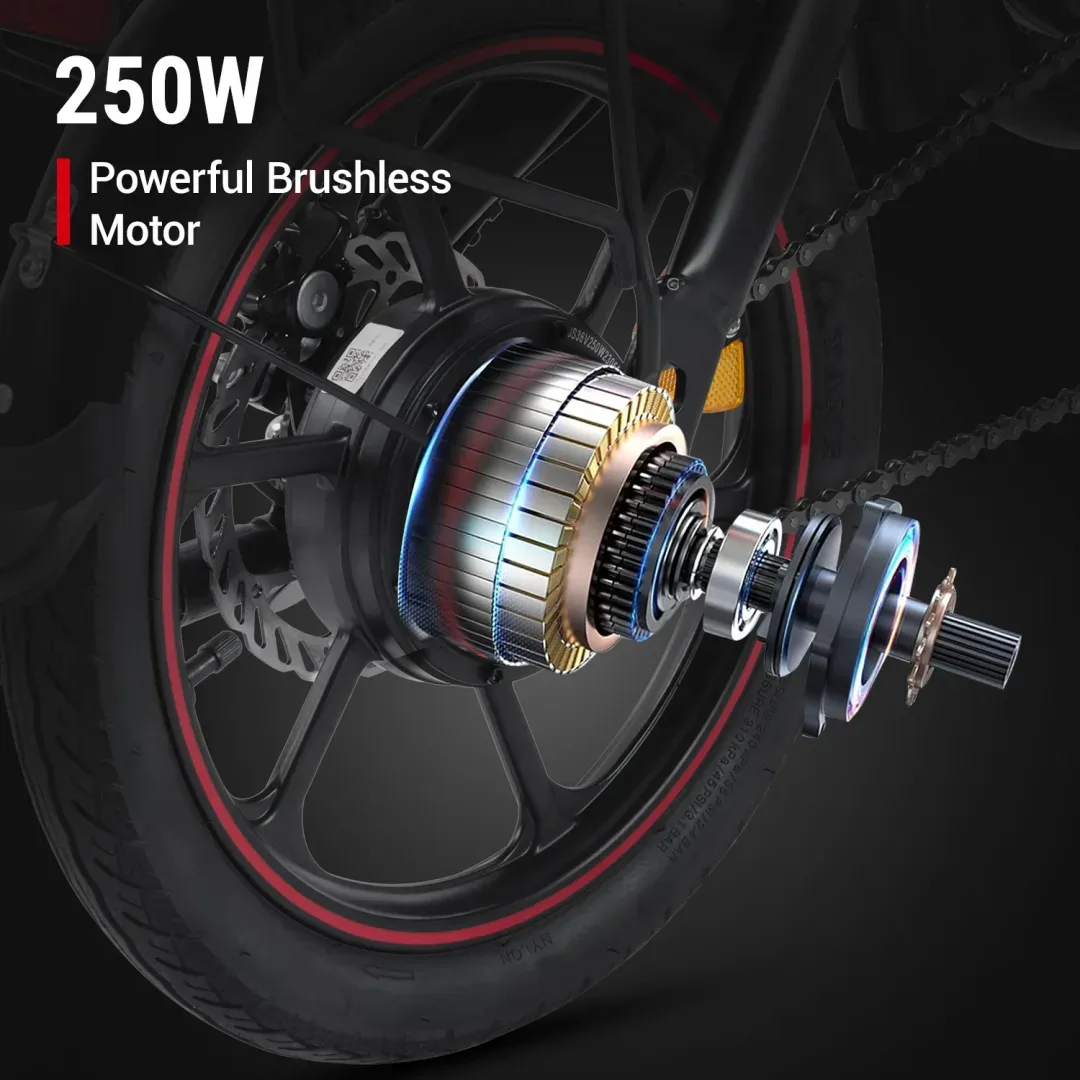

A 250W motor provides electric assistance with a top assisted speed of 15.5 mph. The motor is designed for everyday urban use and works with the bike’s compact frame to provide a simple setup for commuting and regular short-distance riding.

The 36V 10Ah battery provides a maximum assisted range of approximately 31 miles. The battery is integrated into the compact frame design and powers the motor and electrical system during everyday riding.

Actual riding range can vary depending on rider weight, terrain, gradients, tyre pressure, temperature, stopping frequency, assistance use and riding style. Frequent acceleration, heavier loads and steeper routes can reduce the distance achieved from a single charge.

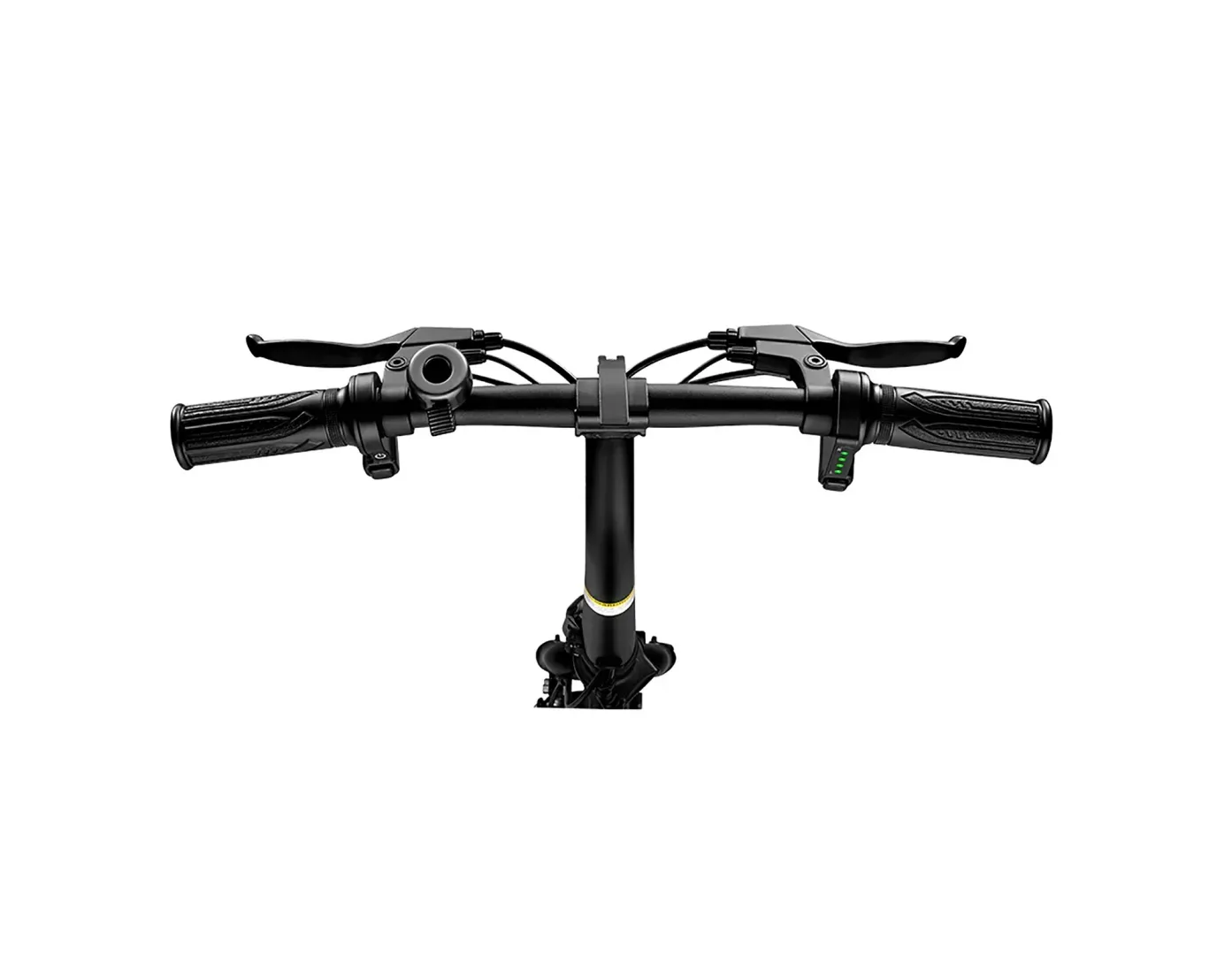

The D3F uses 14-inch wheels and a compact folding frame that reduces storage width when folded. The full bike measures approximately 1170 × 500 × 990 mm, while the folded dimensions are approximately 1170 × 200 × 720 mm.

Disc brakes are fitted for everyday stopping control, and the bike supports a maximum load of 120 kg. The D3F also includes cruise functionality, allowing the throttle to maintain speed after continuous use, together with front lighting for visibility in lower-light conditions.

With its 250W motor, 36V 10Ah battery, 15.5 mph top assisted speed and 31-mile range, the DYU D3F combines compact dimensions, folding functionality and a straightforward urban setup for everyday travel and storage.

Size & Fit
Recommended Height	5.24-6.39 FT
Load Capacity	120KG
Bicycle Weight	19KG

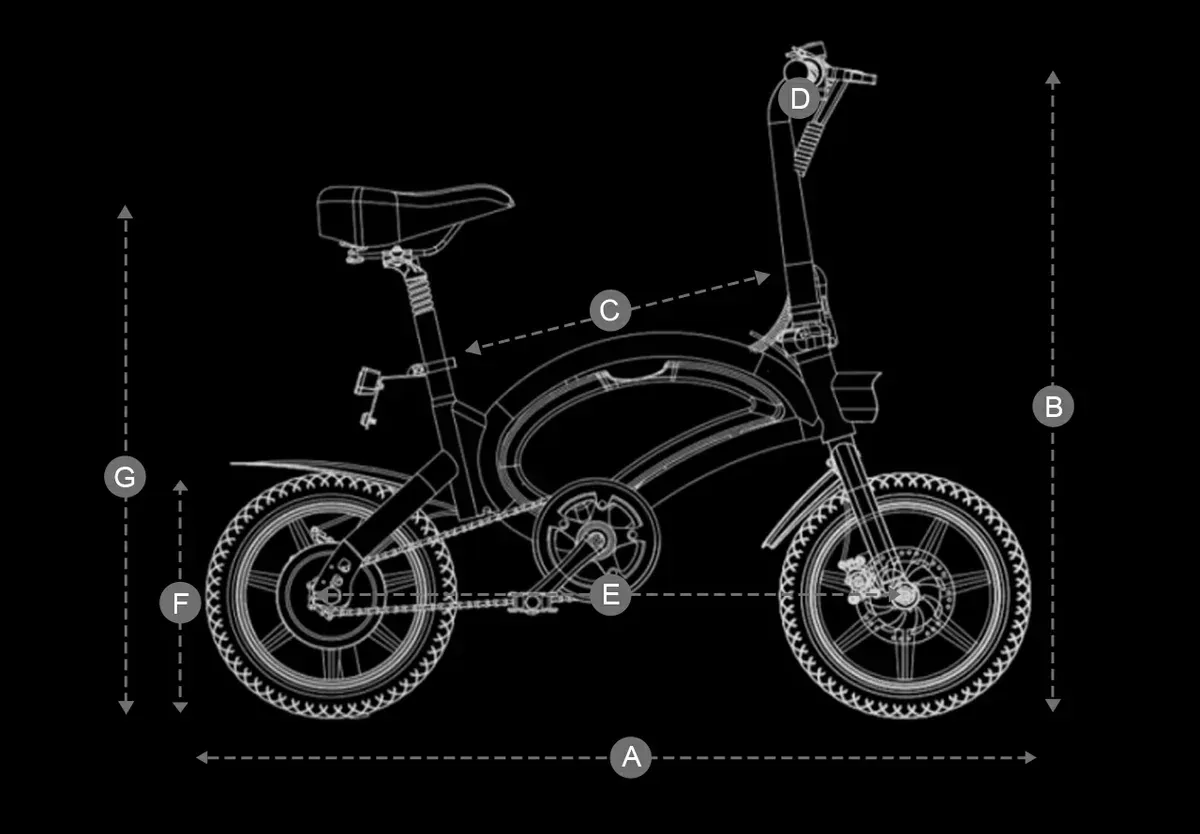

A	45.8 inch - 116.3 cm
B	38.5 inch - 97.8 cm
C	21.3 inch - 54 cm
D	18.5 inch - 47 cm
E	44.9 inch - 114 cm
F	32 inch - 81.3 cm
G	30.5 inch - 77.5 cm
