HIMIWAY C5 Ultra | Electric Bike

The HIMIWAY C5 Ultra Electric Bike combines a strong 6061 aluminium frame with an extended seat and wide 20 × 4.0 inch tyres for a distinctive yet practical everyday riding setup. Its substantial frame and relaxed riding position make it well suited to commuting, leisure trips, and longer electric-assisted journeys.

Electric assistance comes from a 250W Rated Motor Output, paired with a torque sensor that responds to the rider’s pedalling input. The Maximum Assisted Speed is 15.5 mph, while five pedal-assist levels allow the amount of electric support to be adjusted during a ride.

A 48V 20Ah Samsung/LG lithium-ion battery provides 960Wh of capacity for longer journeys between charges. The stated Maximum Range is up to 80 miles under suitable conditions, although actual distance can vary with rider weight, assistance level, gradients, weather, tyre pressure, and riding style.

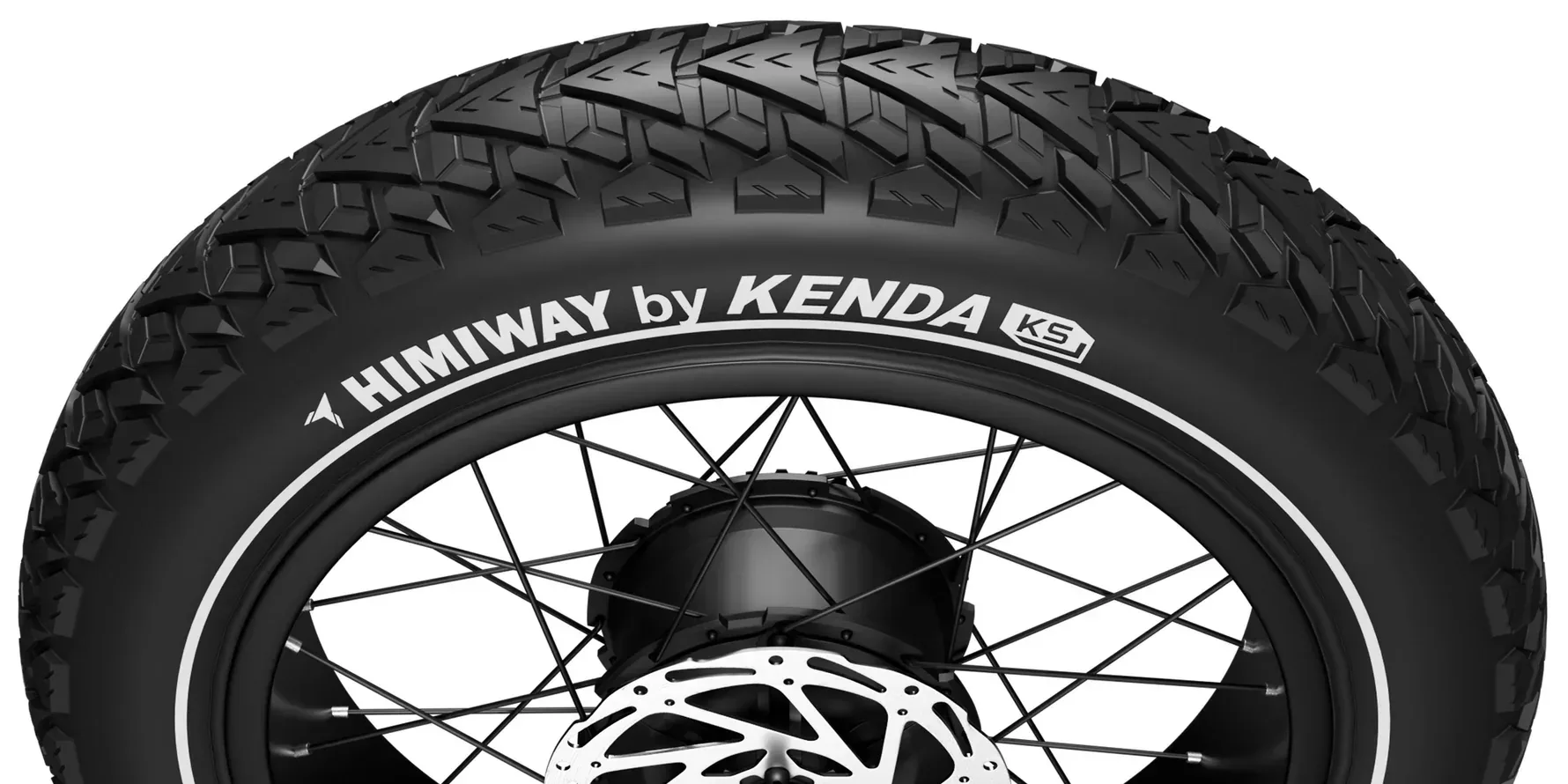

Comfort is supported by front and rear suspension, including a KKE front suspension fork with 140 mm of travel. This setup helps reduce the effect of bumps and uneven surfaces, while the 20 × 4.0 inch Kenda fat tyres provide a wide contact area for a stable and controlled riding feel.

The Shimano Altus 7-speed drivetrain gives riders several mechanical gears for adjusting pedalling effort and cadence as the route changes. Tektro hydraulic disc brakes with 180 mm front and rear rotors provide controlled braking performance that complements the bike’s larger tyres and substantial frame.

A Himiway C2 LCD display keeps useful riding information visible, while the integrated 48V LED lighting adds practical functionality for everyday journeys. The C5 Ultra weighs approximately 88 lbs and has a stated maximum system weight of 330 lbs, with a recommended rider height of approximately 5’4″ to 6’3″.

With its 250W Rated Motor Output, 20Ah battery, torque-sensing assistance, full suspension, hydraulic brakes, Shimano 7-speed gearing, and fat tyre setup, the HIMIWAY C5 Ultra Electric Bike brings together comfort and practical electric assistance in one well-equipped package. Its Maximum Range of up to 80 miles also provides useful flexibility for riders planning regular commuting or longer recreational trips.

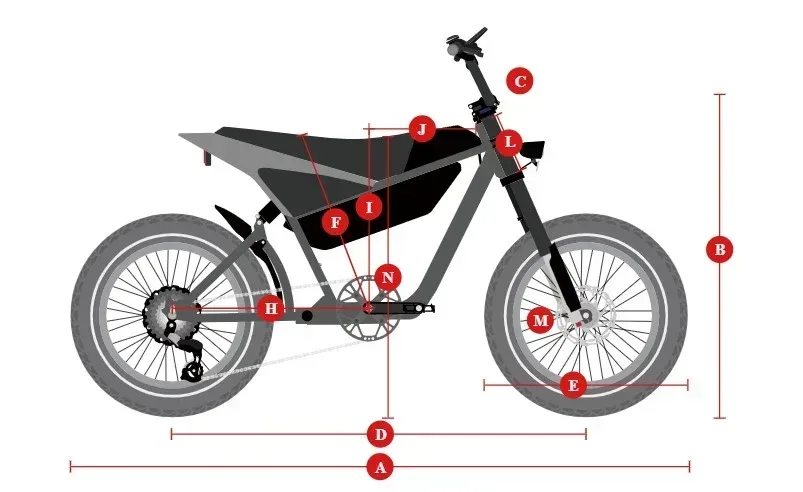

Size & Dimensions
Total Length (A)	70.8” (179.8 cm)
Handlebar Height (B)	48.8” (123.9 cm)
Handlebar Length (C)	29.1” (73.9 cm)
Wheelbase (D)	47” (119.3 cm)
Wheel Diameter (E)	23.3” (59.1 cm)
Minimum Seat Height (F)	31.8” (80.7 cm)
Maximum Seat Height (G)	33” (83.8 cm)
Chain Stay Length (H)	22.5” (57.1 cm)
Frame Stack (I)	31.9” (81 cm)
Effective Top Tube Length (K)	29.4” (74.6 cm)
Head Tube Length (L)	6.7” (17 cm)
Head Angle (M)	66.8°
Standover Height (N)	31.8” (80.7 cm)
